Description

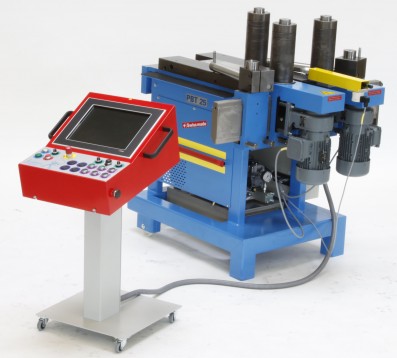

PBT 25® PROFILE BENDING MACHINES
The PBT25 Profile Bending Machine was designed to achieve the highest quality and cost efficiency and was developed on the basis of our many years of practical experience and by listening to our customers. Due to the machine’s modular construction, it can be converted for new processes quickly. As all three machine rollers are driven, even very large cross sections can be bent and because of the very high drive rolls, part profiles up to 11.81″ (300mm) in height can be bent with the highest quality and accuracy.
TECHNICAL DATA
| Flat Bar | ½” x 6″ to 12″ Dia. |
| Power | 27 t |
| All three rollers driven individually: PC50: PC300: continuous |
8/12/24 rpm 1 – 24 rpm |
| Maximum Torque per roller | 1600 Nm |
| Front Roller Adjustable | 200 – 1000mm |
| Tool Holding Fixture ∅ | 105mm |
| Lift Height | 265mm |
| Hydraulic Drive | 3 kW |
| Roller Driver | 3x 1.1 kW |
| Power Supply | 400V/16A |
| Accuracy X Axis – PC50/PC300 | 1/100mm |
| Length | 1’480mm |
| Width | 1’200mm |
| Height | 1’365mm |
| Weight | 1’150 kgs (2,535 lbs.) |
FEATURES
- Modern Ergonomic Design
- Front roller distance infinitely adjustable
- Height of rollers – 300mm (11.81″)
- Machine movable with pallet jack
- Working on both sides possible:
front: rolling
back: folding - Minimal oil quantity – 4.5 gallons (17 litre)
- Powerful control system
- Operator training included in price
- Outstanding Swiss quality
- Applications include: automobile, aerospace engineering, materials handing technology, metalwork shop window construction, structural steel engineering.
